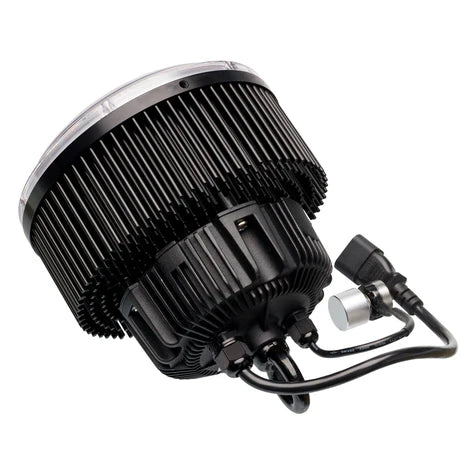

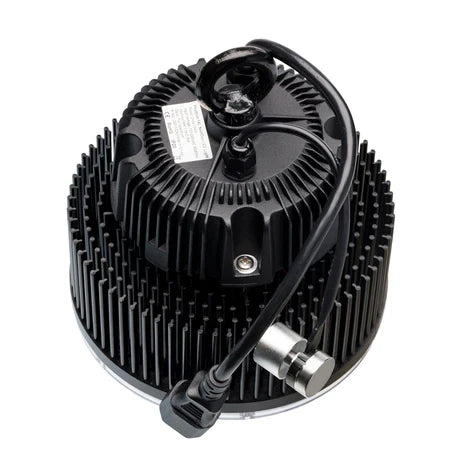

Optic LED PhatSlim 1XL Dimmable LED Grow Light (gen7) 104w

Optic LED PhatSlim 1XL Dimmable LED Grow Light (Gen7) 104w

Optic LED's PhatSlim 1XL Dimmable LED Grow Light is one of the most powerful grow lights on the market. It utilizes top quality and dependable Meanwell 104 watt dimmable drivers to deliver light with a low BTU output, maximum production, and long lifespan. The passive heatsink ensures that there are no fans for heat buildup which improves efficiency while also reducing noise levels.

The new integration of 8 version 2 Samsung LH351H 660nm Deep Red LEDs & 4 Samsung LH351H 450nm Royal Blue LEDs enhances alongside the top tier ultra-efficient LM301H LEDS to give you a robust full cycle Spectrum, increased resin production and gram per watt yields.

NEW! Samsung LH351H v2 - 3.75 umols/J

Flower Coverage

1 Unit

• 2' x 2' area (.6m x .6m)
• Max 2.5' x 2.5' (.75m x .75m)

2 Units

• 2' x 4' area (.6m x .1.2m)
• 3' x 3' area (.9m x .9m)

4 Units

• 4' x 4' area (1.2m x 1.2m)
• Max 5' x 5' (.75m x .75m)

Veg Coverage

1 Unit

• 2' x 2' area @ 24"
• 3' x 3' area @ 18" Hang Height (1.2m x 1.2m)

Hanging Height

• Flower: 8"-18"
• Veg: 24" - 30" (@ 100% Power)
• Seedling: 24" (Dimmed Down @ 50%)

Dimmability

Dimmed at minimum 10% Power



Turned up to 50% Power

Adjusted to 100% Full Power

PhatSlim 1 XL Components

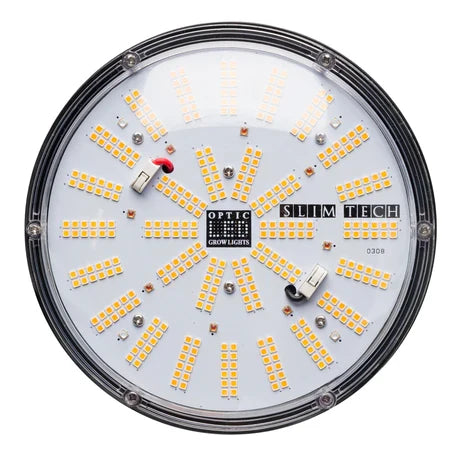

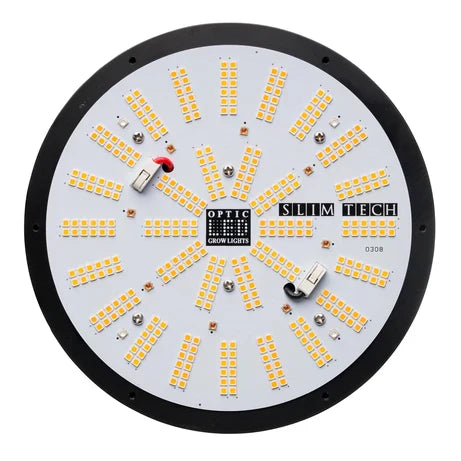

• 360 Top Bin Samsung LM301H - new horticulture specific Samsung led chips

• 8 CREE XPE Deep Reds LEDs
• 4 CREE XPE Royal Blue LEDs

Optics:

• Samsung LM301H LEDS: 120 Degree Wide Beam Lens
• CREE XPE LEDs: 120 Degree Wide Beam Lens
• Standard: 120 Degree Acrylic Lens/Cover

All 372 LEDs have a primary Lens

Secondary Acrylic Lens/Cover provides additional protection and a more uniform 120 Degree beam angle. PAR Meter testing shows 5% higher PAR Values with no Acrylic Lens.

Driver

Meanwell Dimmable HBG Series Driver

Thermal management

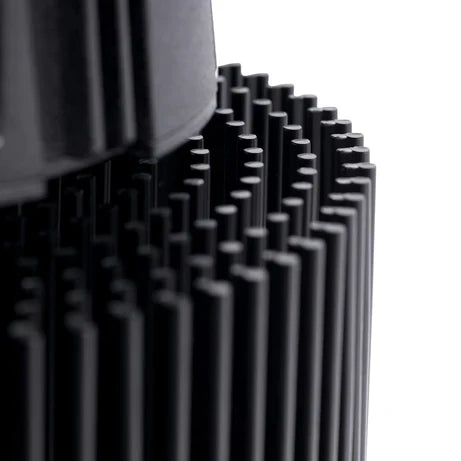

Passive Cooling from an Overbuilt Anodized black Pin Fin Heat sink (Fanless Technology)

PPFD PhatSlim 1 XL in 2x2 area (no lens):

Spectrum:

Full Spectrum White Light + 660nm Deep RED + 450nm Royal Blue

Product Details

• Grams Per Watt: up to 2.8

• Yield: Up to 291 grams / 10.4 ounces / .65 lbs

• HID/HPS Equivalent: 250w HPS

• Kelvin: 3500K DayLight White

• IP Rating: IP65 Waterproof

• PPFD @8" : 803.31

• PAR Efficacy: 2.78 umols/ J

• Actual Power Draw: 104 watts max

• Amps: 1 Amp

• Lifetime: 100,000 Hours+

• Warranty: 10 Years full warranty - Lifetime warranty on Meanwell Driver

• Release Date: May 2021

• Shipping: Free Shipping to 60+ countries

• Light Fixtures: PhatSlim 1XL Gen7 Dimmable LED Grow Light

• Cables: 6 Foot attached power cord

• Plug: USA, CANADA, EURO, Commercial, Industrial, etc.

• Dimming: 10-100% Dimming Capabilities (Dimmer Included)

• Dimensions: 7" x 7" x 8"

• Fixture Weight: 8 Pounds

• Shipping Weight: 9 Pounds

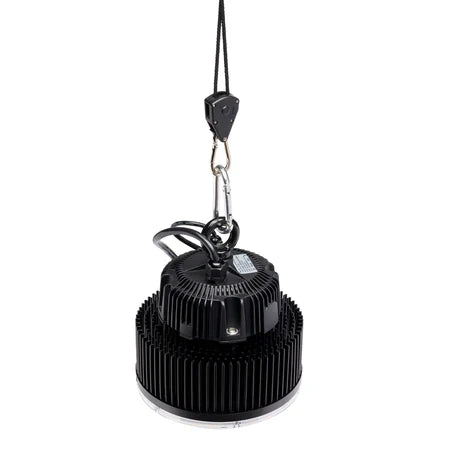

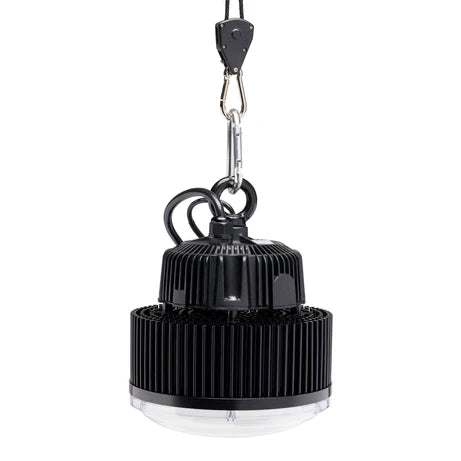

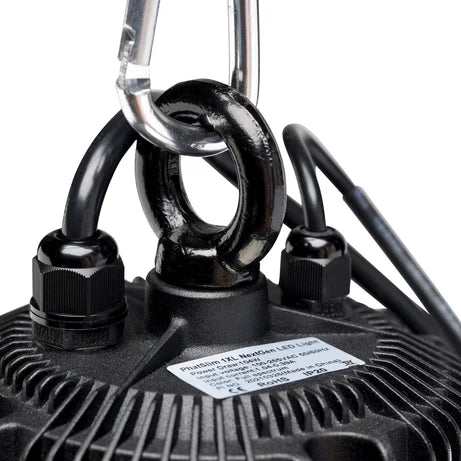

• Hanger: Comes with adjustable rope ratchet & Large Carabiner.

• Recommended for: Closet Grow, Cabinet Grow & Grow Tents.

PhatSlim 1XL Gen7 Dimmable Specifications
